PRODUCT
CATEGORIES
Injection Moulding

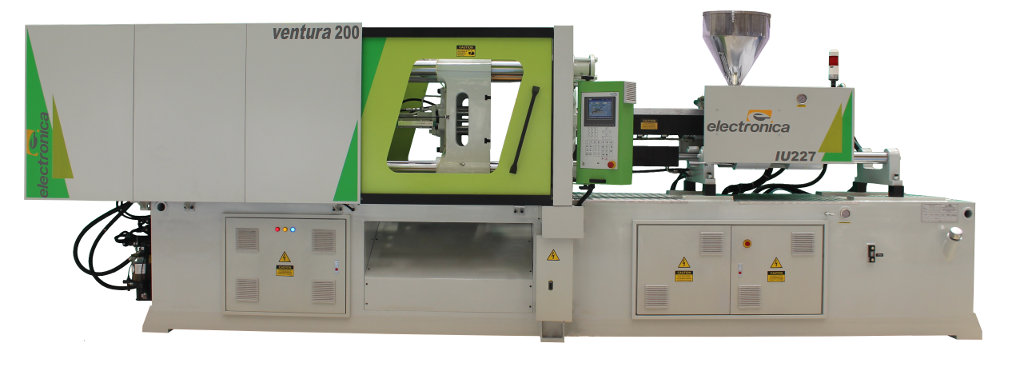

Ventura Series
Ventura
Series
Features
Robust & Rugged five –point double toggle mechanism
A high range of adaptability
A smart & strong design that is made to last
Consistent results even after 8 to 10 hours of operations
Machine can be customized as per requirements
Low power consumption
Low noise levels
Less water consumption for cooling
'T' slots along with additional tapped holes
Higher Mould opening strokes
Higher Maximum Daylight
Higher ejector stroke with multi point knock out plate
Progressive Type auto grease lubrication system
Modular injection unit design offering a wide choice for shot weights
Higher injection pressures
Servo Motor + gear pump controlled by an advanced servo integrated Servo system
Strong & compact tubular base frame structure
Certifications
CE Certification received in February, 2019.
Click here to view
Technical Specifications
Clamping Force
1000 kN to 2500 kN
Dist. between Tie Bars (DBT)
435 X 435 mm to 660 X 660 mm
Daylight Opening
880 to 1420 mm
Screw Diameter
31 to 72 mm
Shot Weight (ps)
102 to 1071 gm
Download Product Catalogue
Applications
Automotive
Electrical & electronics
Writing instruments
Industrial
Medical
House ware
Appliances
